Honeycomb frame spike
Spike” honeycomb frame is made of non-woven fabrics with excellent drainage and water retention properties, and is formed into a honeycomb shape by a special process.
Related Projects
Products & Services
forte

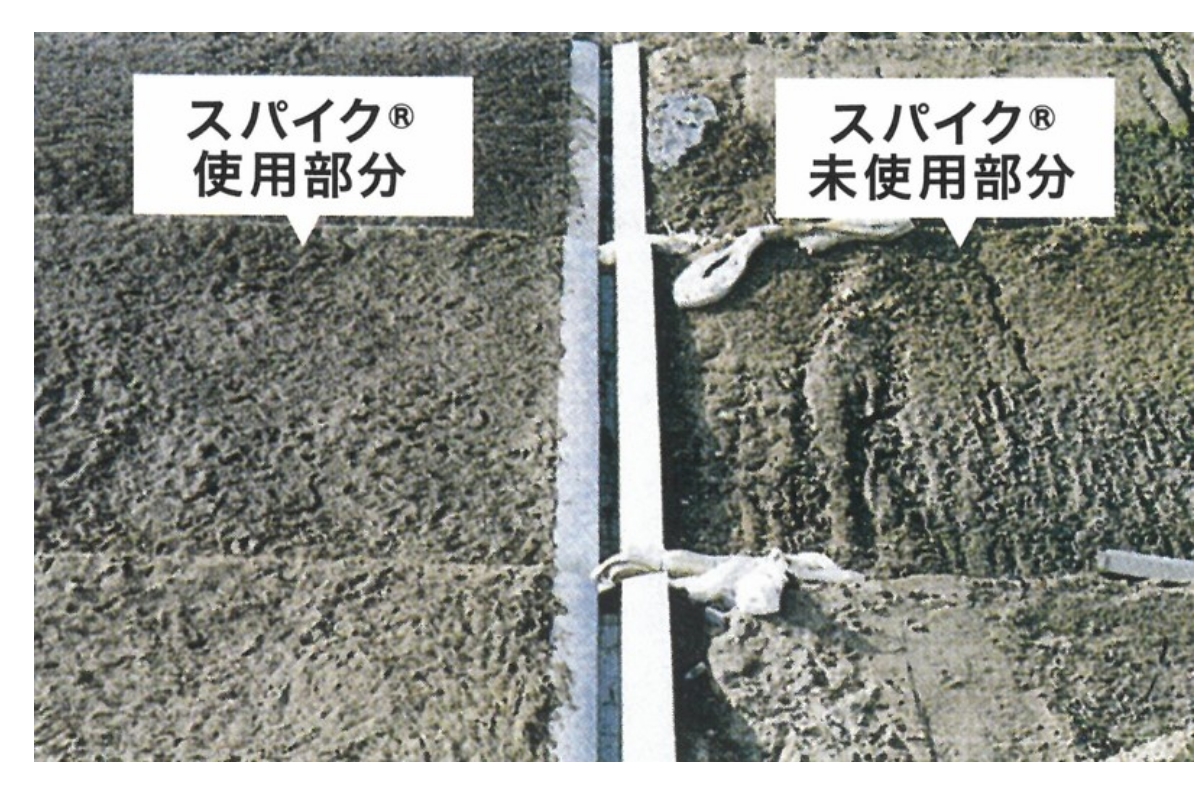

Resistant to clogging

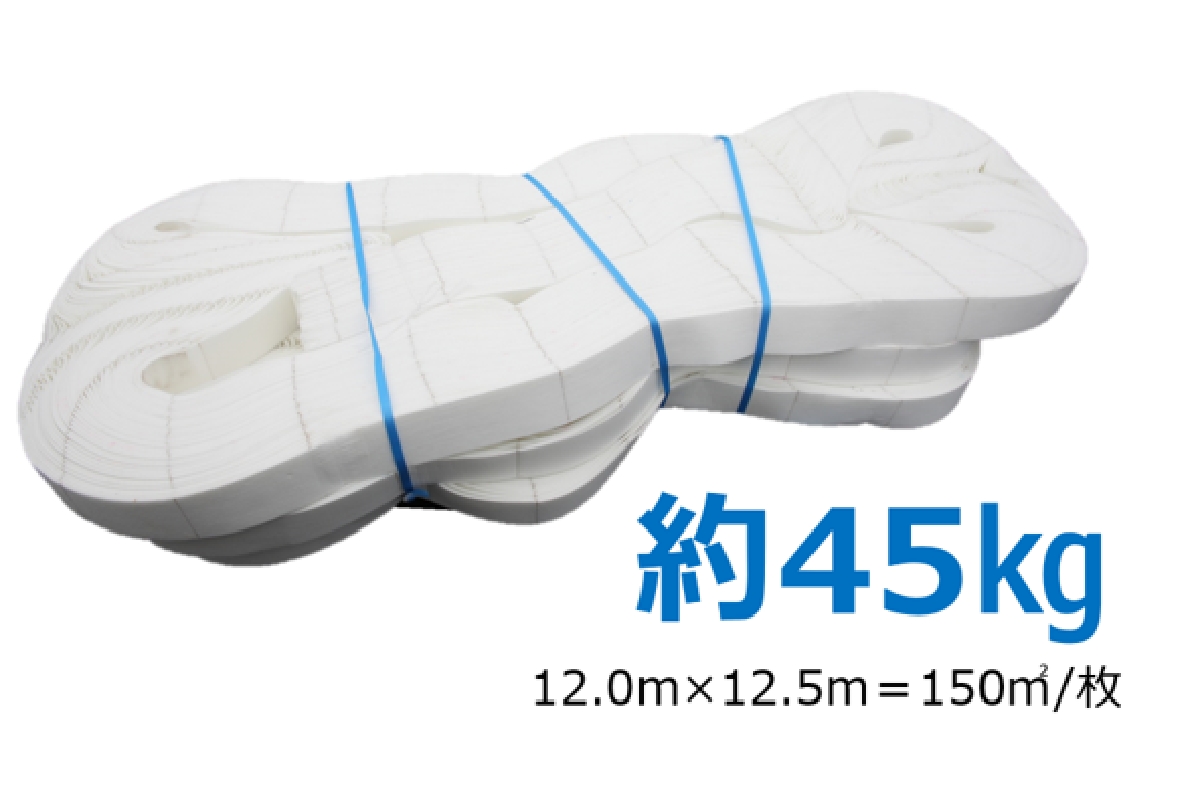

Lightweight and compact for storage, transportation, and delivery to site

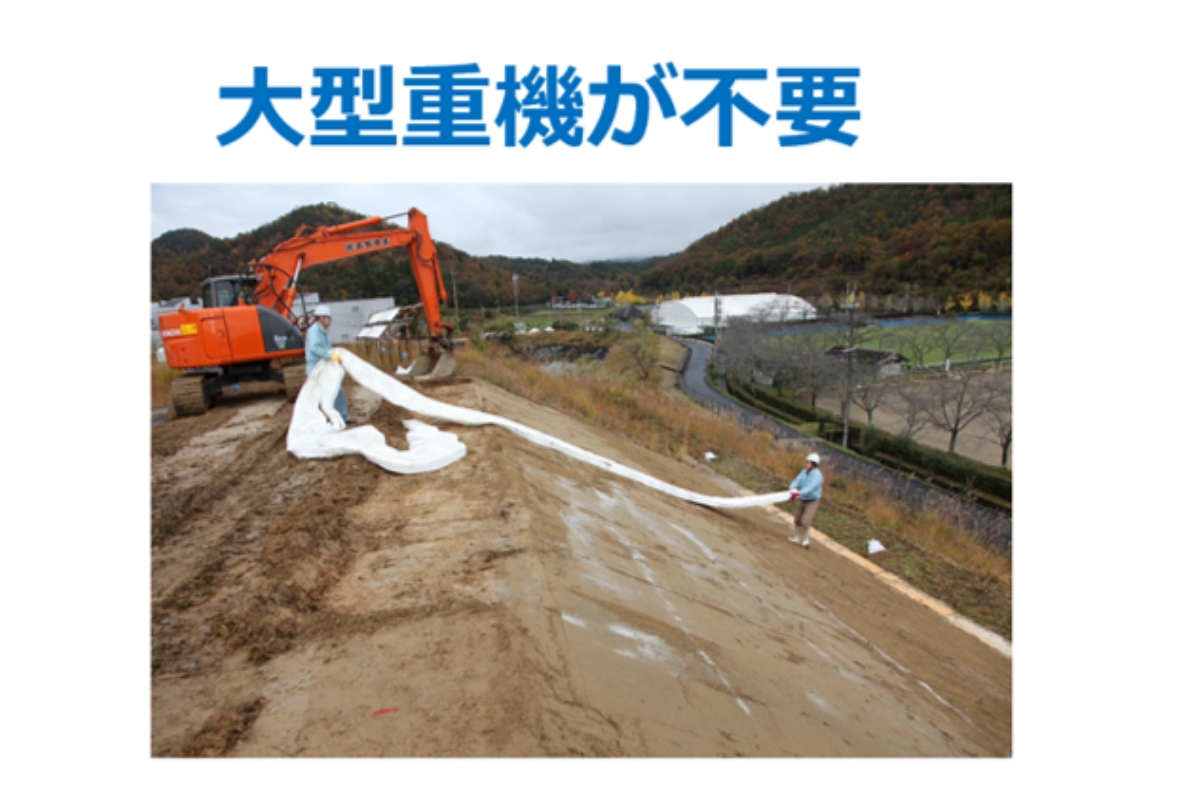

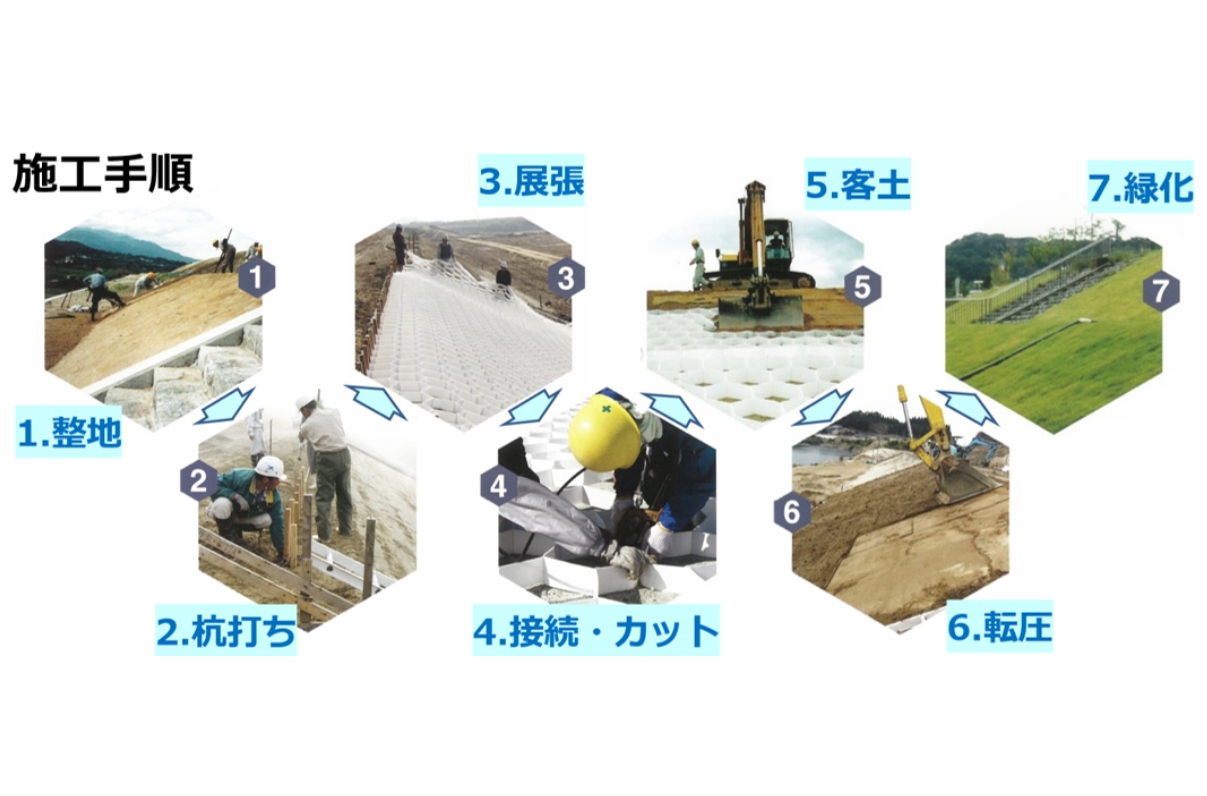

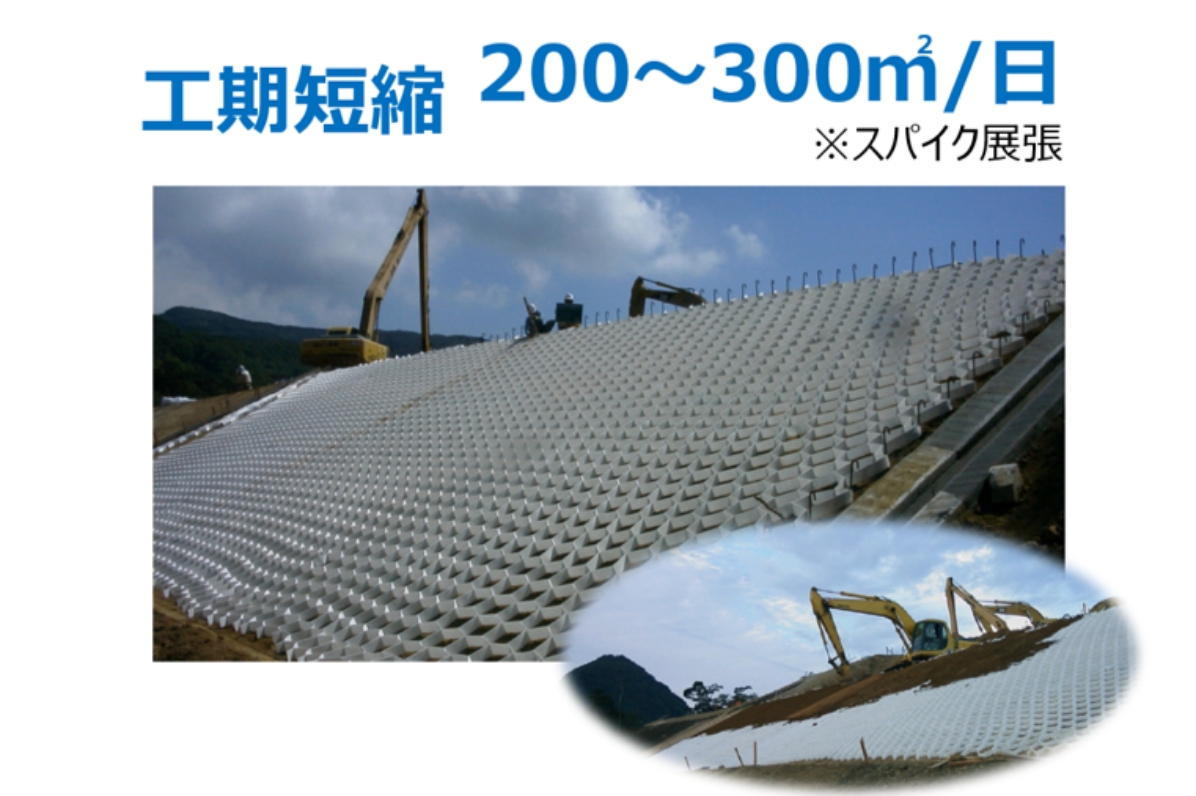

workability
It takes little time to spread, is easy to install, and its honeycomb structure of synthetic fiber non-woven fabric makes it easy to install on curved surfaces, etc., depending on the site, and also accommodates slight irregularities.
Corrosion resistance and base
The honeycomb principle distributes the load and provides strength, and the material is polyester, which is highly resistant to corrosion in soil.
Corrosion resistance and base

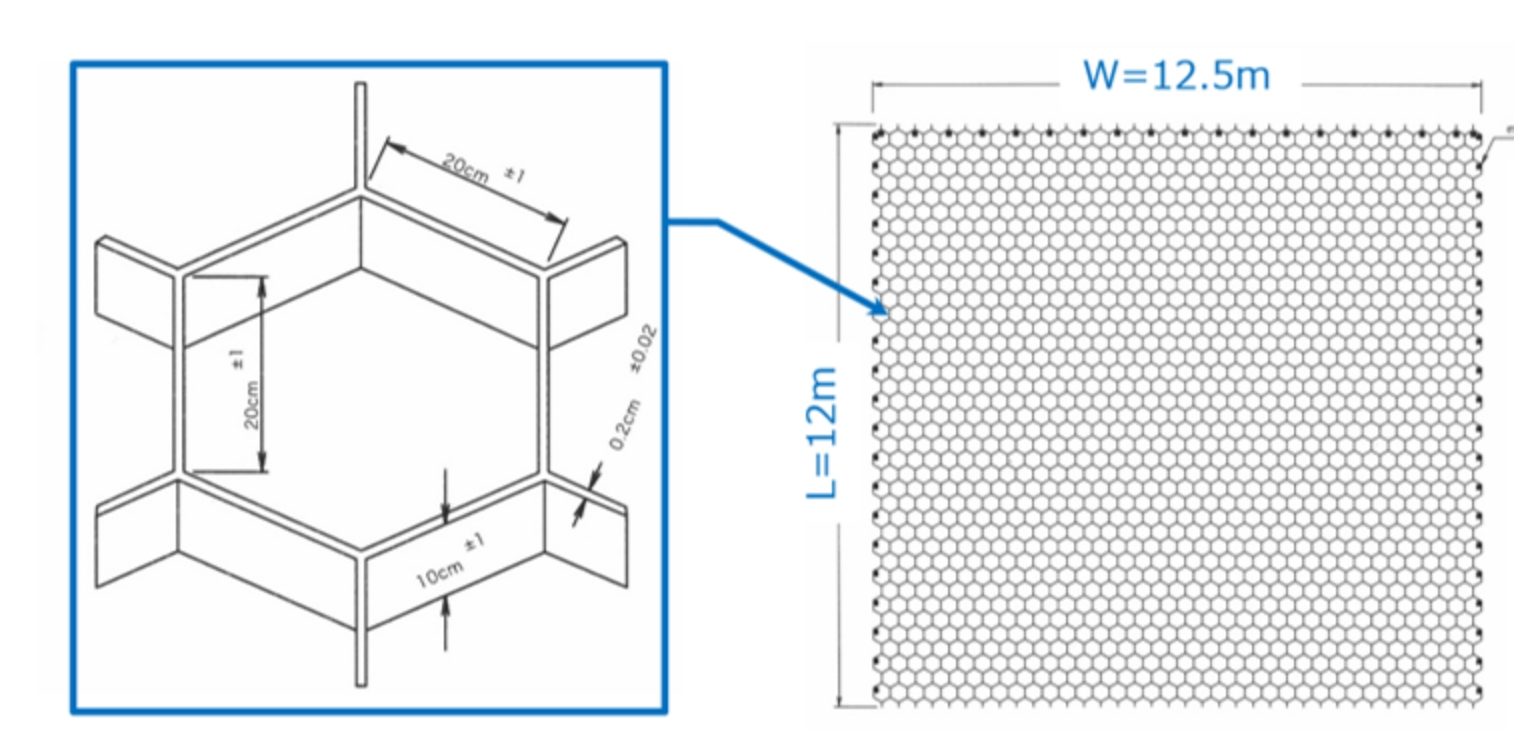

Standard dimensions
| standard | ||
|---|---|---|
| Height (width) | length of a side | Dimensions after stretching |
| 10cm | 20cm | 12mL x 12.5mW |
| special characteristic | remarks | ||
|---|---|---|---|
| Thickness (mm) | 2.0 | dial gauge method | |
| Tensile strength N/5cm(kgf/5cm) | vertical (relationship) | 1,029.0(105.0) | JIS L 1906 cut-slip method |
| horizontal (as opposed to vertical) | 784.0(80.0) | ||
| Elongation (%) | vertical (relationship) | 45.0 | |
| horizontal (as opposed to vertical) | 40.0 | ||
| Tear strength N/5cm(kgf/5cm) | vertical (relationship) | 294.0(30.0) | JIS L 1906 Trapezoid method |
| horizontal (as opposed to vertical) | 245.0(25.0) | ||
